Our Atmospheric Water Generators are built for environments where conventional water sources are limited, infrastructure is lacking, or clean drinking water must be secured independently.
Water Generation Volume (t=30℃, ⌀=80%): 200 L/Day
Total Power Consumption (KW): 4.8
Power Distribution (KW): 5
Electrical Supplement (3 phases, 4 lines): 220V 60 Hz
Internal Storage Capacity of Water (Litres): 110 l
Fan Power Consumption Centrifugal (KW): 0.2
Air Volume (m'/h): 3,000
Input Compressor Power (KW): 4.66
Refrigerant: R407C or R33
Dimensions (m): 1.6 × 0.72 × 1.28
Weight (Kg): 320 kg
Minimum distribution wiring (mm): 3 × 2.5+1
Water inlet pressure (MPa): 0.1~0.6

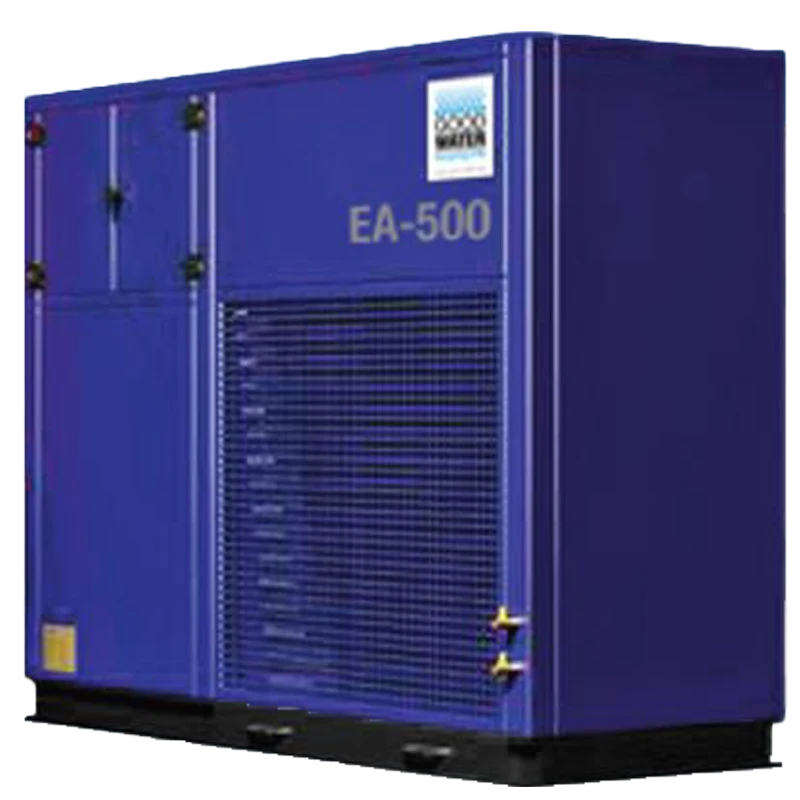

Water Generation Volume (t=30℃, ⌀=80%): 500 L/Day
Total Power Consumption (KW): 10
Power Distribution (KW): 11
Electrical Supplement (3 phases, 4 lines): 220V 60 Hz
Internal Storage Capacity of Water (Litres): 240 l
Fan Power Consumption Centrifugal (KW): 0.4
Air Volume (m'/h): 6,000
Input Compressor Power (KW): 9.45
Refrigerant: R407C
Dimensions (m): 2.35 × 0.85 × 1.42
Weight (Kg): 560
Minimum distribution wiring (mm): 3 × 4+1
Water inlet pressure (MPa): 0.1~0.6
Dimensions
Power
Humidity (%) / Capacity (liter)
