DIRECT STREAM - DESIGNED TO TAKE CARE OF YOU AND THE PLANET

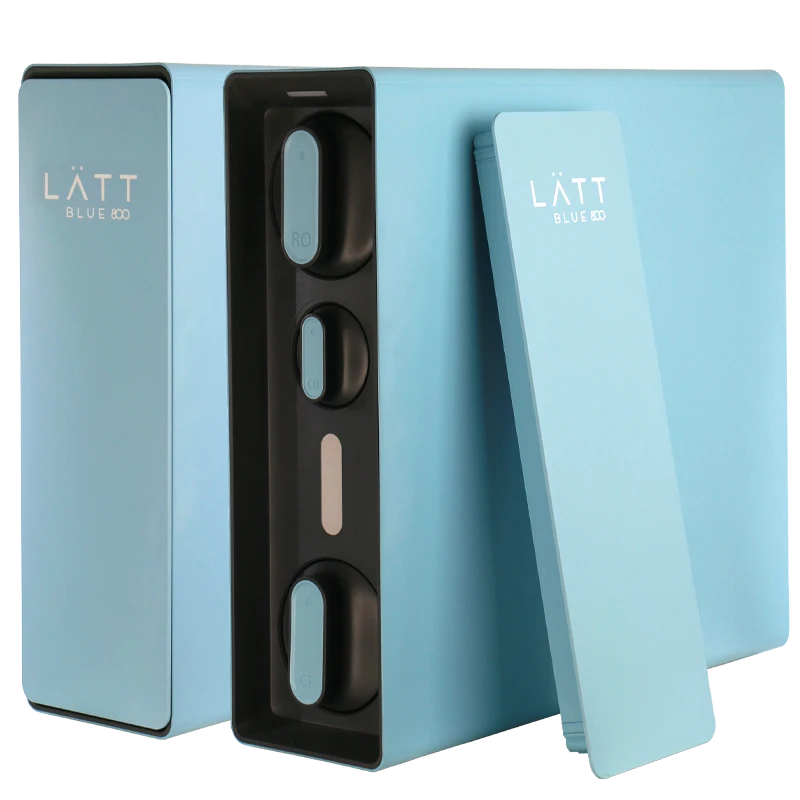

Unlike other reverse osmosis systems, RO LÄTT BLUE 800 has no water tank. You can enjoy healthy water according to your needs, which will come out of the smart tap uninterruptedly, in quantity and quality. This means that no waste is generated and no plastics are used which pollute the planet.

• Sustainability
• Compact Size
• low-cost
• Unlimited Water
• Healthy Water

5-stage reverse osmosis

• 5-stage system with pump
• Installation kit
• Special 1-way tap
• Greenfilter membrane
• Integrated tank
• High-performance pump

Key Benefits

• Direct Access
• Double Flow
• Click System
• Versatility
• Aquastop
• Carbon

WHL 2500ppm | HL 3500ppm | L 6000ppm | M 10000ppm | R 15000ppm

‍

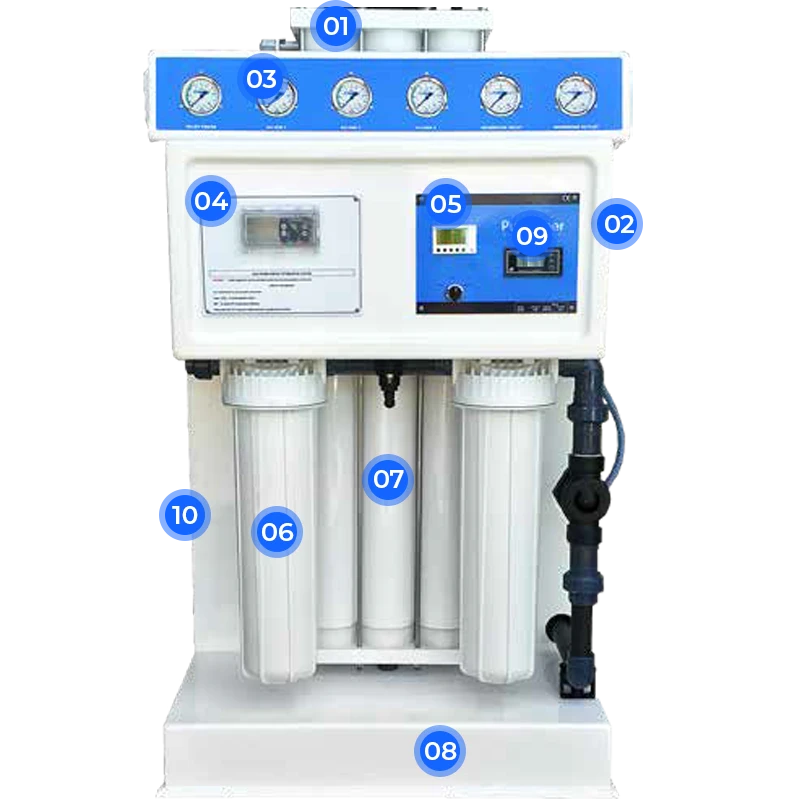

1. HYDRAULIC SAFETY CIRCUIT- Product water circuit manufactured with materials approved for food use and up to 7 bar working pres-sure.
2. CONTROL ROTAMETERS- Complete measurement of operating flows.
3. HYDRAULIC PANEL - Pre-filtration and RO circuit control pressure gauges in stainless steel and glycerin bath.
4. 316 STAINLESS STEEL PUMP WITH ELECTRONIC CONTROL - Frequency converter, which saves energy by keeping the reverse osmosis circuit pump in the ideal working regime. The integrated display indicates the electrical working conditions, current consumption, voltage, etc.
5. INTEGRAL CONTROL AUTOMATION - Control of the operating parameters of the equipment and external failures such as lack of water at the inlet. The electronic display indicates the quality of the produced water, equipment operating phases, accumulated hours since the first start-up and both external and internal anomalies. The system includes pre-installation for a bottle-type washable filter.
6. SAFETY PRE-FILTRATION - Replaceable 1-micron pleated cartridges for continuous working, made of polyester resistant to organic contamination. Filtering surface of each prefilter of 1.5 m2 and 3 m2 in the IFK-1000 model and higher.
7. LATEST GENERATION MEMBRANES - Membrane/container assembly that facilitates equipment maintenance. With high rejection of salts and with an increased surface area of up to 8m2 each, special for IFK equipment. Low working pressure and low electricity consumption. Produced water quality notably better than with conventional membranes.
8. STAINLESS STEEL CHASSIS - One piece, moulded in polyester reinforced in fibre-glass. Eliminates corrosion problems and extends the useful life of the equipment.
9. READING CONDUCTIVITY METER
10. WASHING SYSTEM (OPTIONAL HL MODELS)

WHL 2500ppm | HL 3500ppm | L 6000ppm

‍

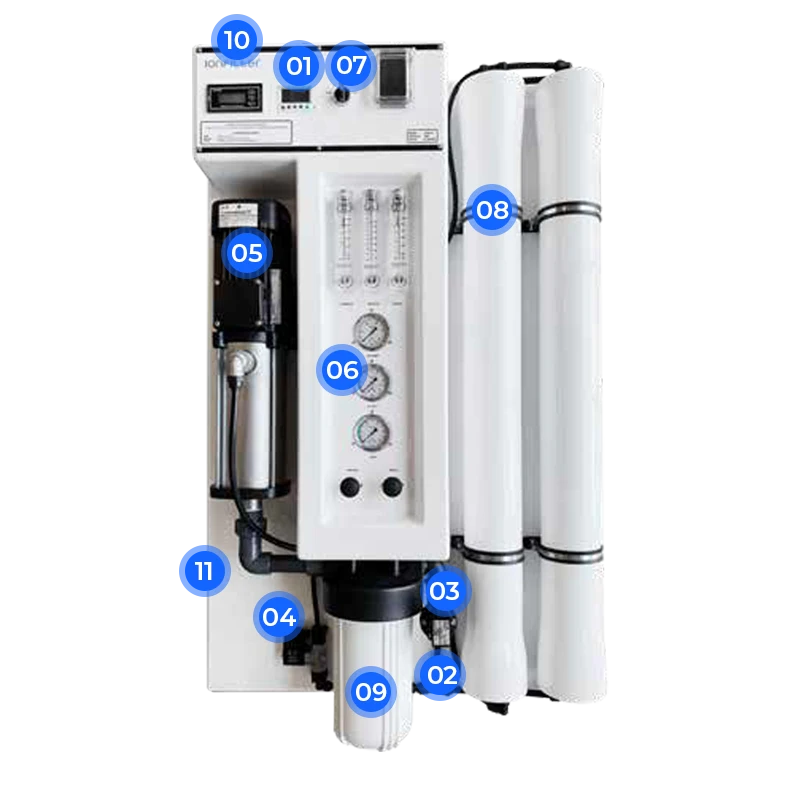

1. ELECTRONIC CONTROL PANEL - The electronic PLC controls the operating parameters of the equipment and the start or stop depending on the water needs and automatic membrane flushing cycles. The integrated electronic display indicates the operating phases of the equipment and external and internal anomalies, including:
   - Full produced water tank indicator
   - Membrane self-flushing in progress indicator
   - Pre-installation for bottle-type washable filter
   - Safety shutdown due to water failure at the inlet
   - Operating hours counter
2. AUTOMATIC INTERNAL SELF-FLUSHING - Flushing type washing system with mains water that is activated periodically each time the equipment stops.
3. AUTOMATIC PRESSURE REGULATOR - Innovative system that maintains the adjusted working pressure regardless of the inlet pressure.
4. ADJUSTABLE WATER CONVERSION - Integrated water conversion percentage adjustment system to optimize the quality of permeated water, consumption and energy expenditure.
5. GRUNDFOS HIGH PERFORMANCE PUMP - Medium pressure pump, centrifugal, made of stainless Steel 316 for heavy duty.
6. HYDRAULIC PANEL - With pressure gauges to control working pressures.
7. AUTOMATIC/MANUAL START/STOP SYSTEM - Level switch included in the supply.
8. LATEST GENERATION TORAY MEMBRANES - Membrane/container assembly that facilitates maintenance. Low working pressure and low electricity consumption. High rejection of salt.
9. SECURITY FILTRATION - Great capacity, 1 micron pleated filter.
10. PRODUCT WATER CONDUCTIVITY METER (OPTIONAL)
11. FLUSHING SYSTEM (OPTIONAL) With osmosis water.

‍
