COMPONENTS AND TECHNICAL CHARACTERISTICS

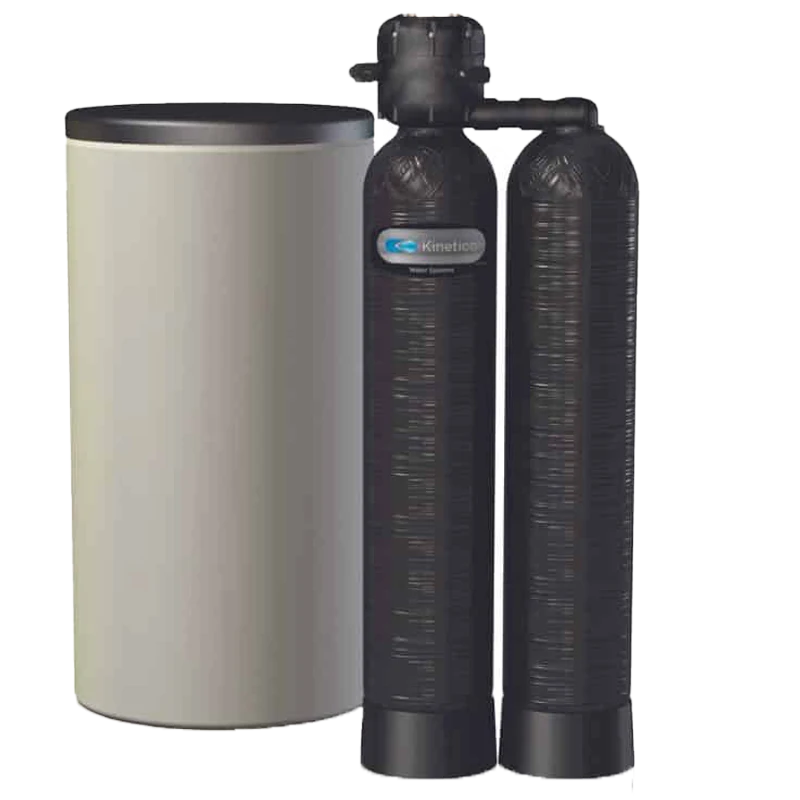

System components:
Bottle size: (2) 203 × 1016 mm
Total bottle volume: 29.5 l
Load type: Cationic resin
Resin: 2 x 201.
Programmer type: Selector disc
Meter type: Polypropylene turbine
Measurement range (min. - max.): 1.1 LPM - 94.6 LPM
Regeneration type: Countercurrent
Inlet water quality:
Working pressure (min. - max.): 2.5 - 8.6 bar
Dynamic pressure
Working temperature (min. - max): 2 - 50 ℃
Working pH (min. - max.): 5 - 10
Maximum free chlorine: 2 ppm
Maximum hardness: 113 °HF
Working specifications:
Working flow rate: 2,6 m³/h
Nominal peak flow rate: 4 m³/h
System configuration: Alternative
Weight (operating/shipping): 91 kg/64 kg
Connections:
Inlet/Outlet: Noryl 1" male/1 1/4" male
Drain: 1/2" pipe
Brine suction: 3/8" pipe (internal)
Overflow: 1/2" pipe
Salt tank:
Tank type: 18‘ x 35’
Material: HOPE
Salt capacity: 114 kg
Double bottom: YES
Regeneration specifications:
Water consumption: 132 L
Duration: 40 minutes
Backwash flow rate: 7.6 LPM
RECOMMENDED THC
2 reg/day optimum: 215.2 °HFxm3
4 reg/day optimum: 430.4 °HFxmª
6 reg/day maximum: 6-45.6 °HFxmª
THC: Consult your distributor.
Equipment dimensions (mm)
A: 1168, B: 432, C: 203, D: 460, E: 890
